Description

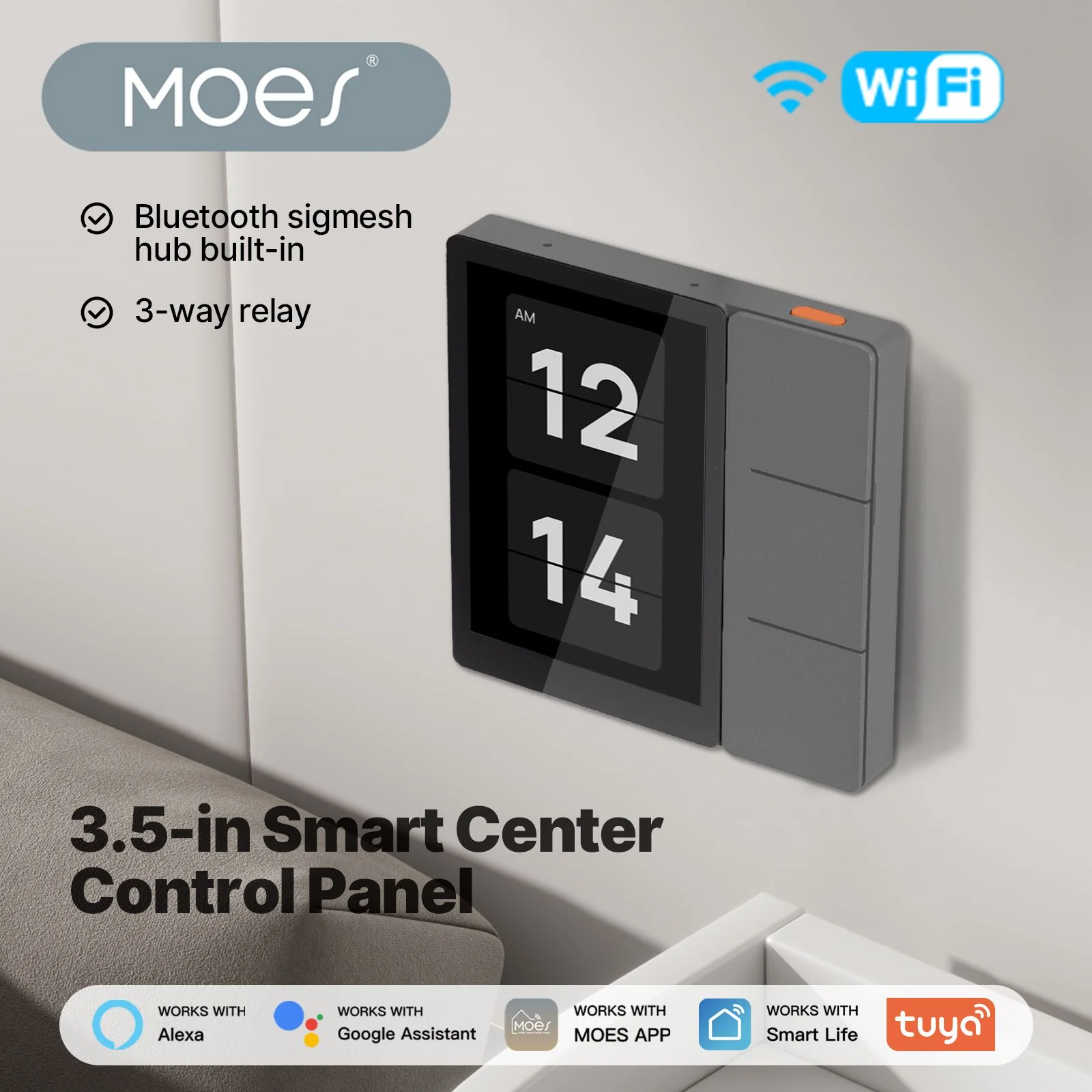

Tuya WiFi 3.5-in Smart Center Control Panel is your ultimate home automation hub — combining powerful device control, security monitoring, and Bluetooth gateway capabilities in one sleek touchscreen panel.

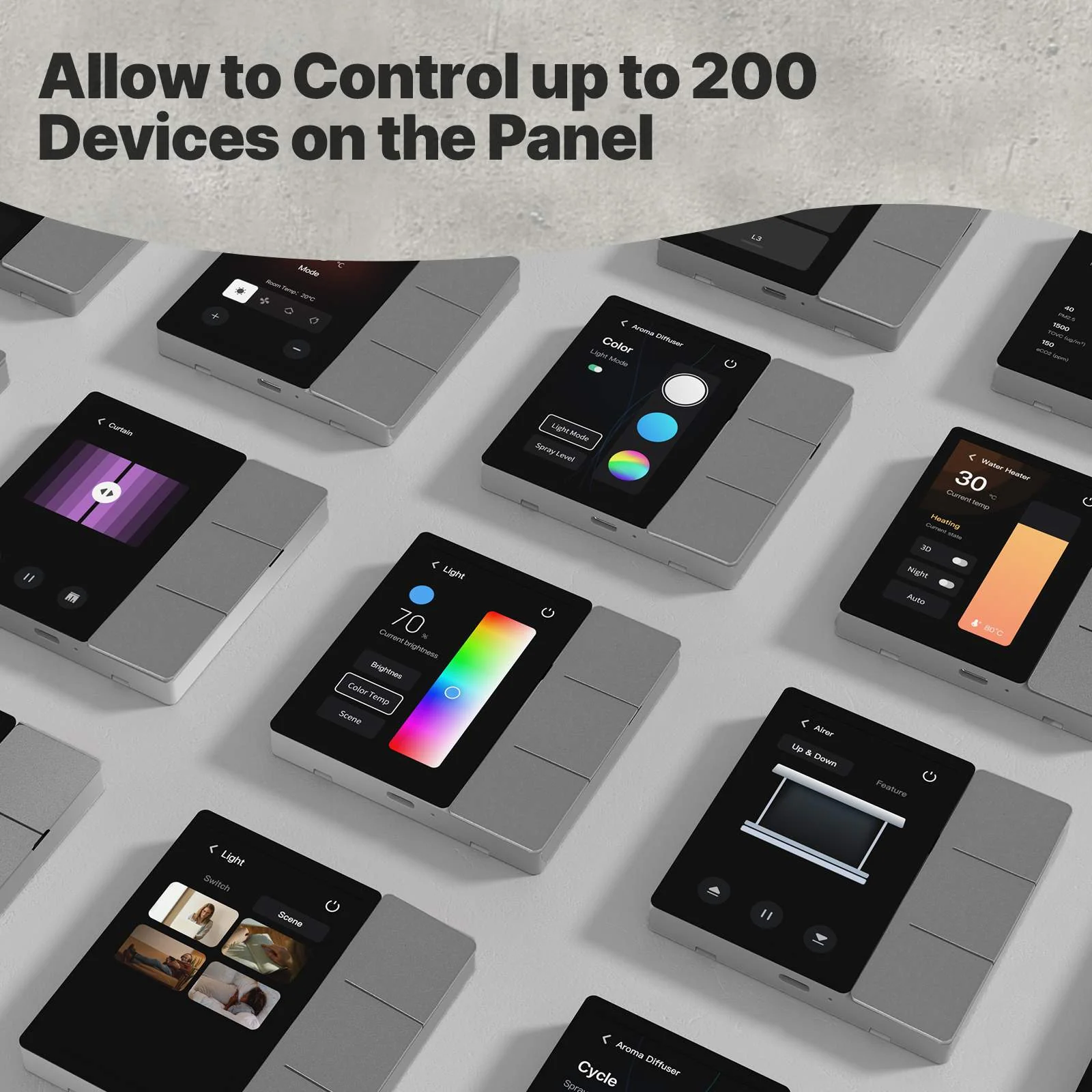

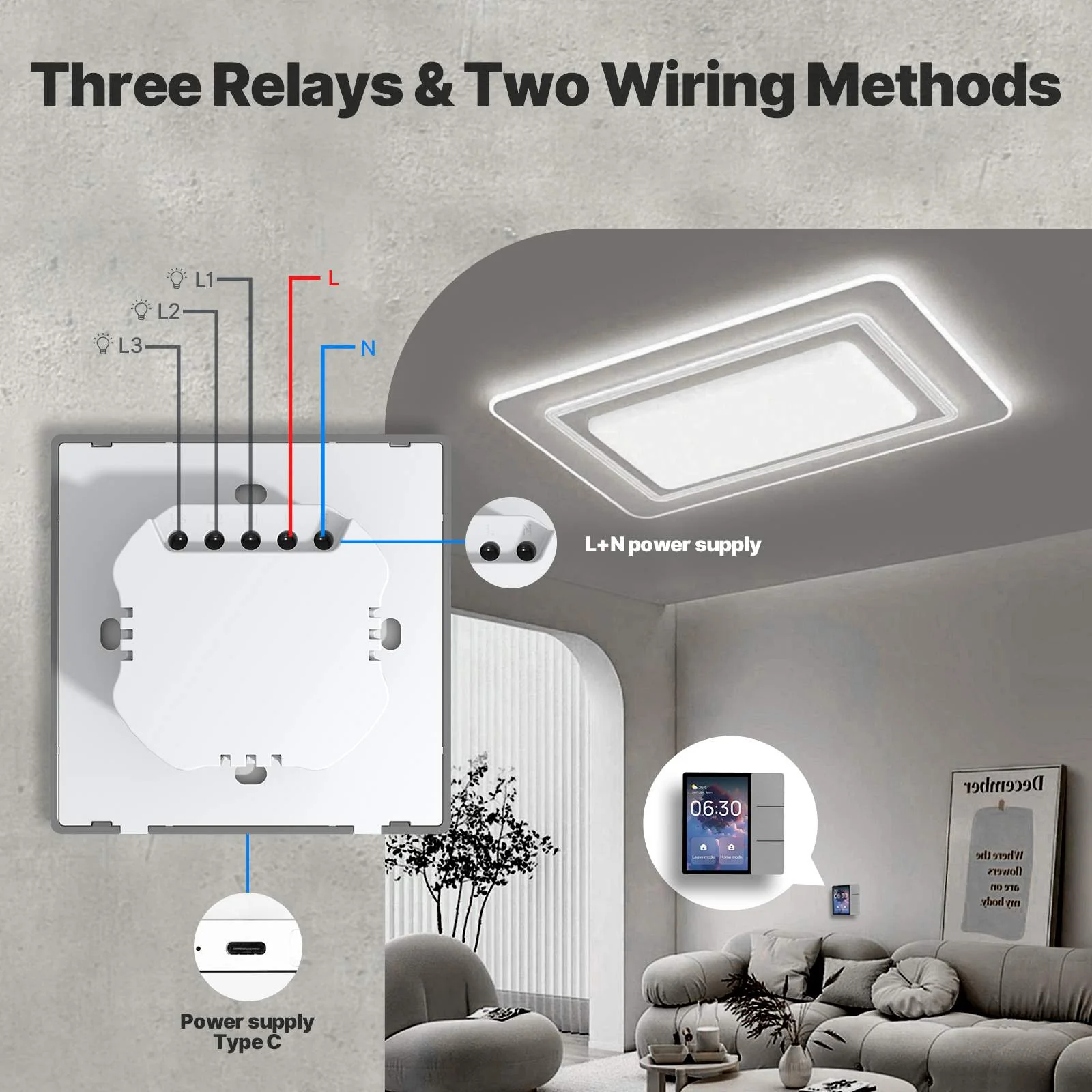

Featuring three independently controlled relays and two wiring methods, it easily adapts to different installation scenarios. Control up to 200 smart devices directly from the screen, including lights, switches, thermostats, and more.

Keep your home safe with the built-in security alarm features, which can be integrated with door/window sensors and motion detectors for real-time protection.

As a Bluetooth Sigmesh gateway, this panel supports pairing with up to 128 Bluetooth Sigmesh sub-devices, making it a perfect central controller for your entire smart home setup.

Smart, secure, and scalable — this panel is the smart core your home needs.

Features

Ultra-large screen ratio: 3.5-inch smart central control screen, the largest screen display area in its class.
Three separate relays & Sigmesh gateway integration: Efficient control integrating three separate relays and Bluetooth Sigmesh network.

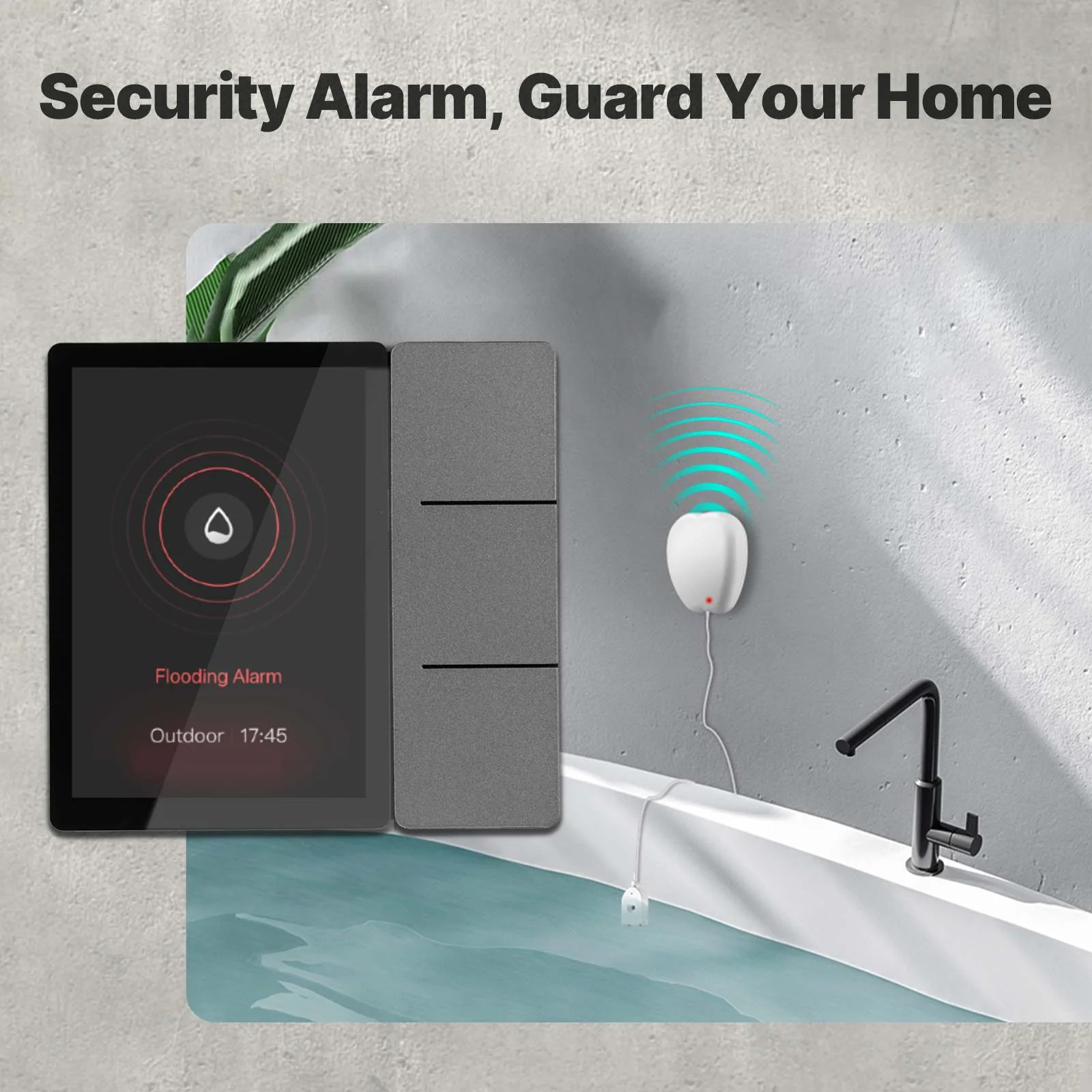

Security alarm: Automatically links with smoke, gas, water sensors, and SOS buttons. Sounds an alarm and shows an alert card when danger is detected.
Instant control physical buttons: Equipped with three physical buttons to achieve quick function access.
Custom screensaver & wallpaper: Upload photos from your phone and set them as screensavers or wallpapers on the 3.5-inch panel.

Specifications

Product Name: Smart Control Panel Mini
Product Model: CCP-S05
Input: 100-240V～；50/60Hz, 6A MAX
Wireless Protocol: Wi-Fi、Sigmesh
Maximum Load:
Maximum total load: 600W
Maximum load per channel: 200W
Operating Temperature: 0°C～40°C
Operating Humidity: 5% to 90% RH (Non-condensing)
Size:
86*86*11.5mm (excluding base)
86*86*35.5mm (including base)
Frequency Band: 2400-2483.5MHz
Maximum Radio Transmit Power: 20dBm

Packing List

Smart Control Panel Mini*1
User Manual *1
Screw *4
Reset pin*1
